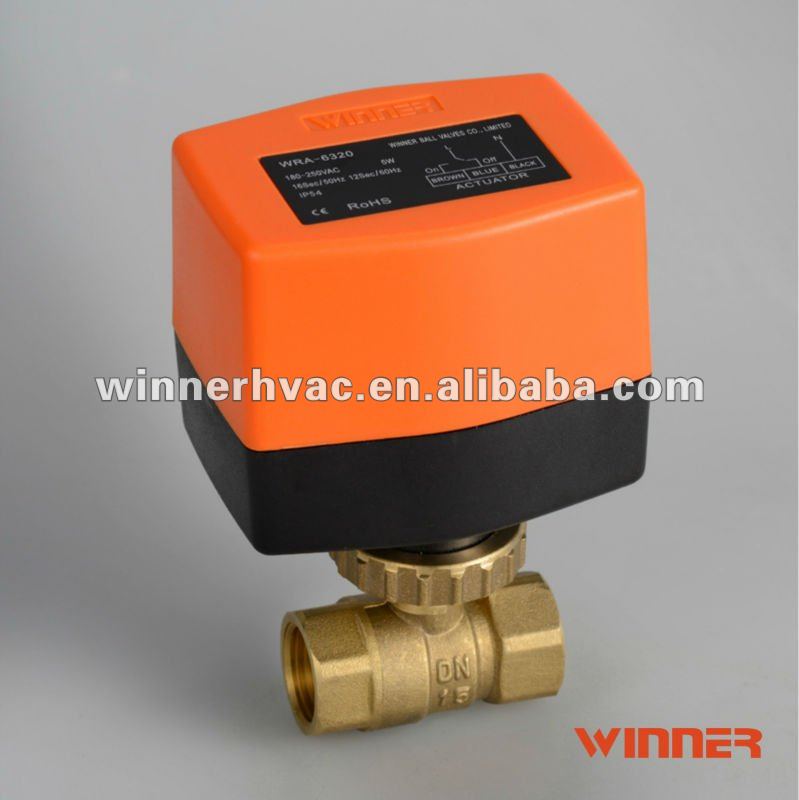

24v AC on/off 2-way motorized ball valve

24v AC on/off 2-way motorized ball valve

FOB Price:
US 16.3-21.3 / Set
Min.Order Quantity:
30 Set/Sets
Supply Ability:
20000 Set/Sets per Month
Port:
Changsha Shenzhen Shanghai
Place of Origin:
Hunan, China (Mainland)
Payment Terms:
L/C,T/T,Western Union
Brand:
Winner
Products Model:
WRA-6302A
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: Winner

    Model Number: WRA-6302A

    Place of Origin: Hunan, China (Mainland)

Packaging & Delivery

  • Packaging Details: PE bag,box,carton
  • Delivery Detail: Within 7 days after payment

Specifications

1.We are OEM,so the unit price is competitive.
2.The motorized ball valve has beautiful outlook and better quality.

WRA-63… series motorized ball valve consists of on/off type or 3-point type actuator and W8BV… series ball valve,which have compact structure,stable operation,excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque. Winner motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipments.
Application
HVAC system.
heating system.
Water treatment system.
Industrial equipments.
echnical data
Medium: cold/hot water, with 50% glycol           Temperature of medium: 2°C...90°C
Rated pressure: PN20                                        Pipe connector: internal thread
Ambient temp. range: −5…+60°C;0…90%RH    Size: 1/2’’, 3/4’’ and 1’’
Valve type: 2-way and 3-way                             Protect rank: IP55 & IP54
Material
Valve body
Valve body: forged brass, Hpb59-1               Seal: ball: EPDM+PTFE
Ball: chrome-plated brass                             Stem: EPDM O-rings
Actuator
Shell: PC+10GF                                             Actuator revolving shaft: POM

Model No.

Inner Dia.

Inch

Valve type

Kvs(m3/h)

Pvmax(KPa)

Ps(KPa)

W8BV215

12mm

1/2”

2 way

8.6

1000

1400

W8BV220

15mm

3/4”

13

1000

1400

W8BV225

20mm

1”

18

1000

1400
